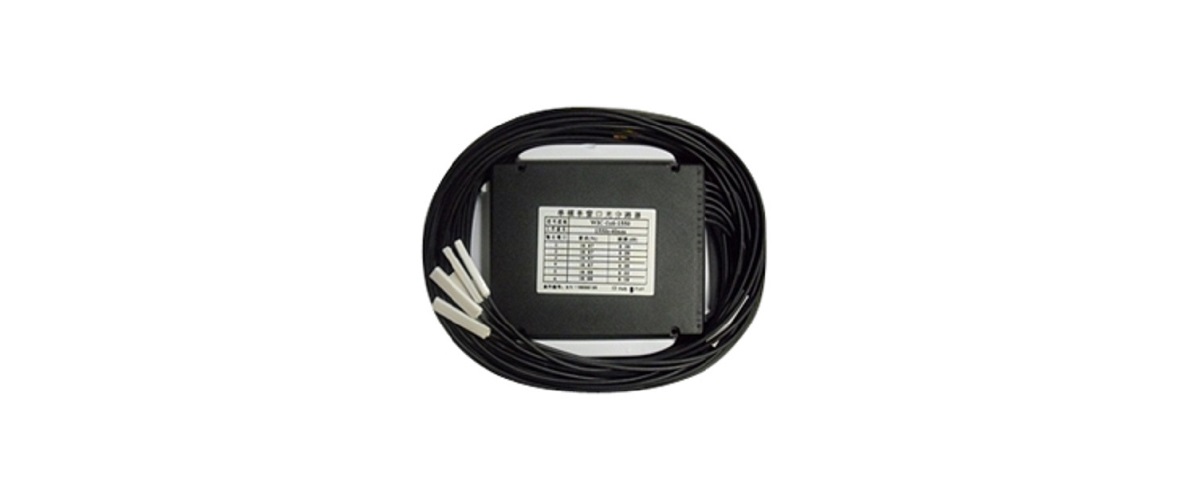

FBG-T-1 single-ended ceramic temperature sensor
The FBG-T-1 Single-Ended Ceramic Temperature Sensor features intrinsic safety, anti-electromagnetic interference, corrosion resistance, lightning protection, high insulation, and a compact structure. It adopts a single-end fiber output and can be connected in parallel configuration

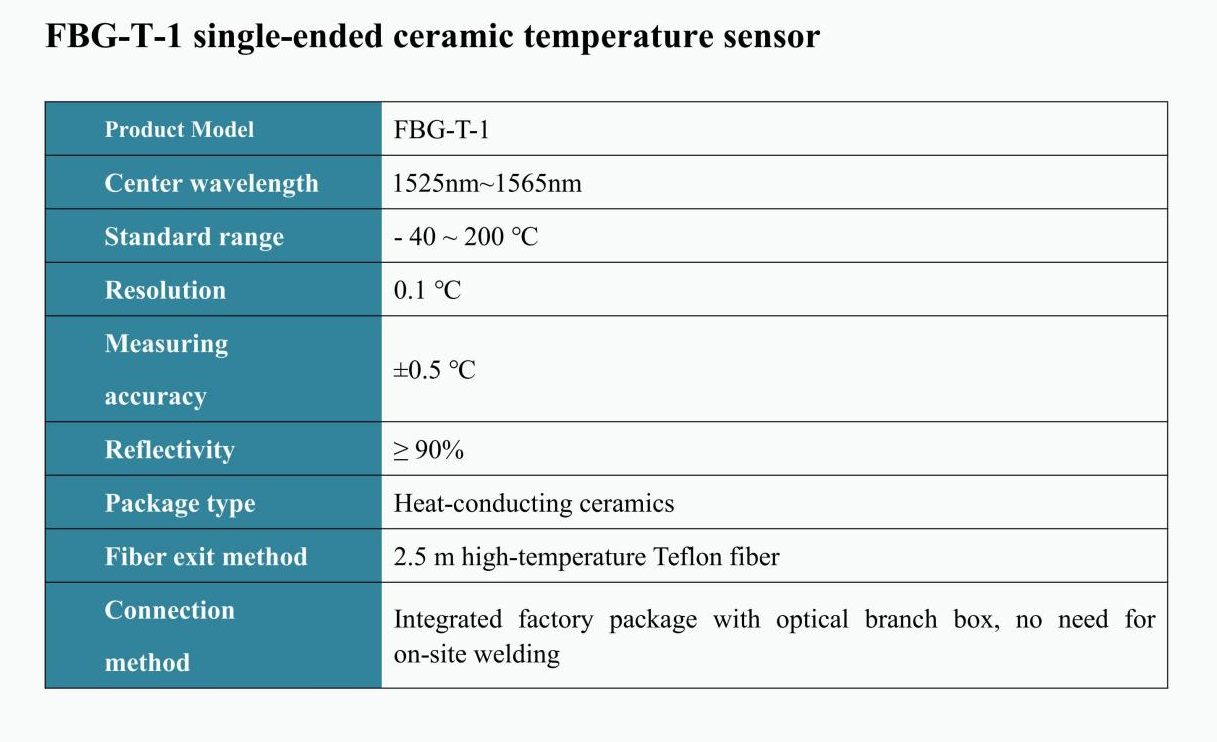

technical parameter

Product Features

1. Intrinsic safety, resistance to electromagnetic interference, corrosion resistance, and lightning strike resistance

2. High insulation level and small volume

3. Single ended fiber output, parallel connection mode

application area

1. Temperature monitoring of moving contacts, stationary contacts, copper aluminum busbar crimping surfaces, etc. in high-voltage switchgear

2. Temperature monitoring of cable joints and high-voltage busbars

3. Transformer temperature measurement

4. Temperature monitoring of transformers and reactors


phpWoTskF


Data download
