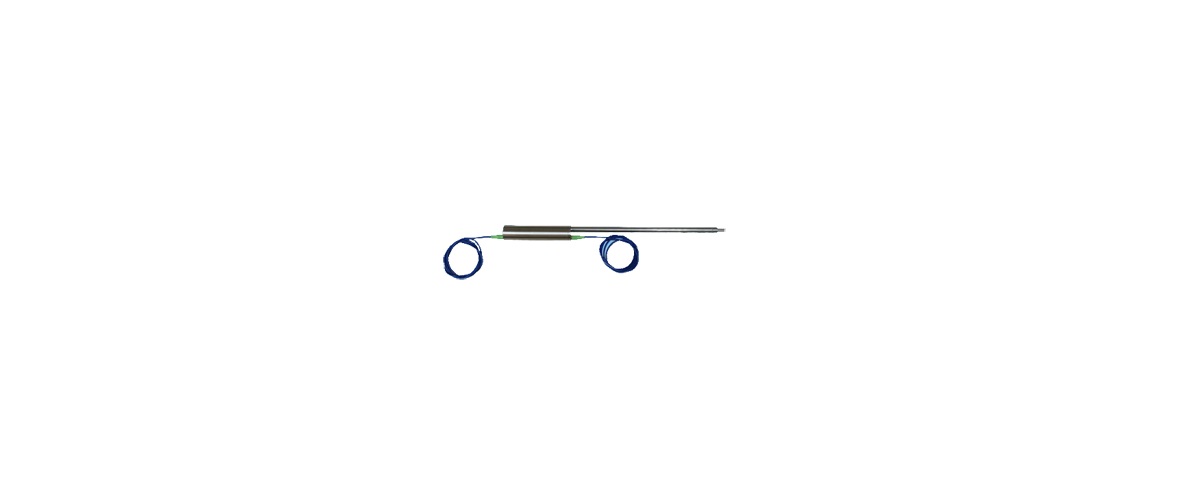

FBG-D displacement sensor
The FBG-D displacement sensor uses fiber Bragg grating as the displacement sensitive element, and the measurement accuracy is not affected by the transmission distance of the fiber and electromagnetic interference. When the connecting rod is pulled out from the sensor body, it will cause a change in the wavelength of the grating. By reading the wavelength, the displacement of the measured object can be accurately obtained.
FBG-D 位移传感器

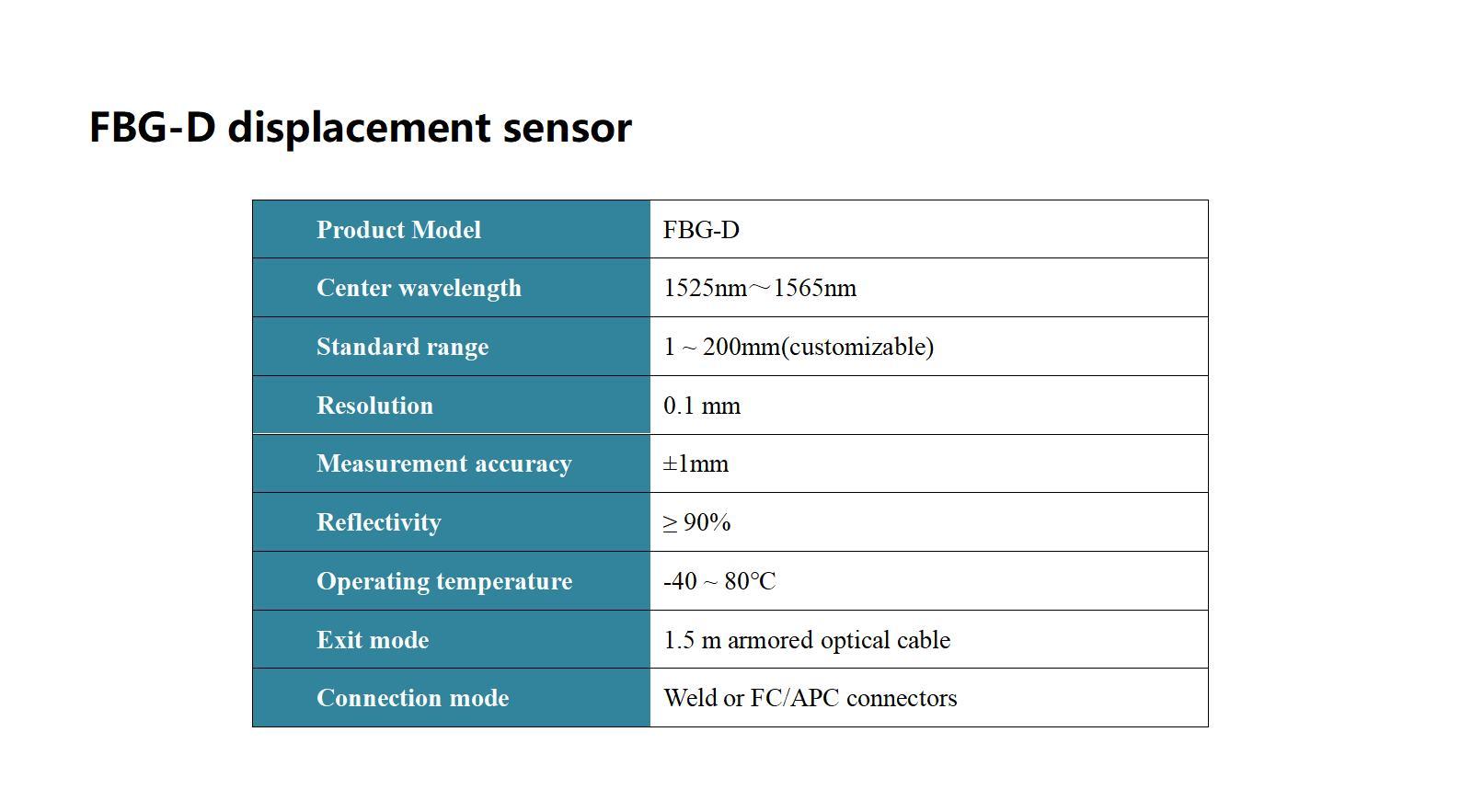

technical parameter

Product Features

1. High precision, large range, and high reliability

2. Corrosion resistance, pollution resistance, lightning protection, and can be applied under harsh conditions

3. Multiple sensors can be connected in parallel on a single optical fiber

application area

1. Measurement of displacement and deformation at different depths in bridges, dams, tunnels, and various underground engineering projects

2. Measurement of ground subsidence deformation, slope sliding deformation, etc

3. Long term monitoring of deformation of steel structure foundation and displacement of mine pressure relief groove, etc
