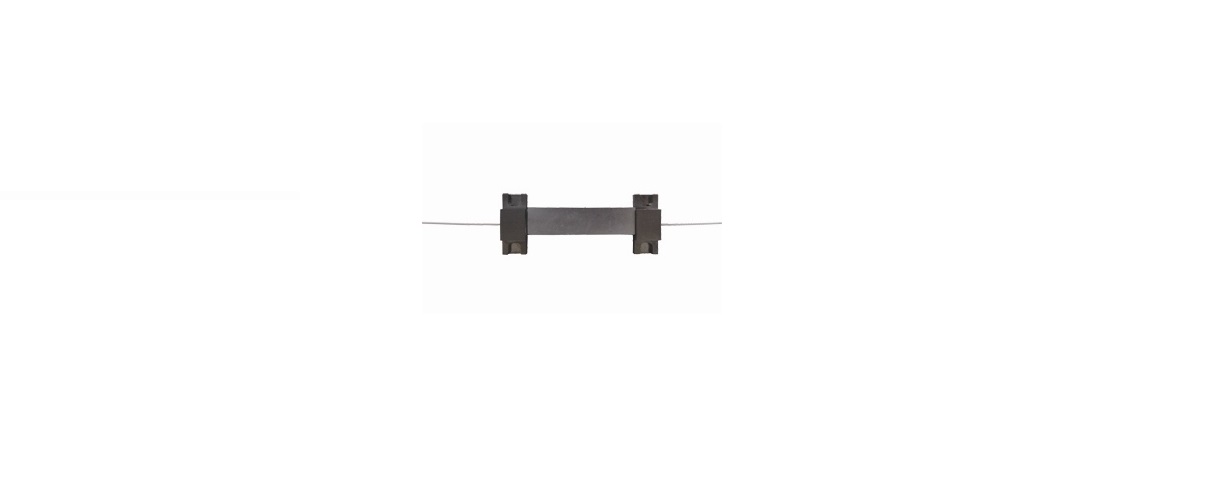

FBG-S4 Large range strain sensor
FBG-S4 Large Range Strain Sensor: FBG-S4 has the advantages of high measurement accuracy, reliability and safety, anti-interference, and easy construction of distributed sensing networks. Mainly used for safety monitoring of large civil engineering projects such as bridges, steel structures, and buildings. Designed for certain situations where the strain is large and argon arc welding is inconvenient, it has 0.3mm thick spot welding areas on both sides, which can facilitate users to use micro spot welding machines to weld to the surface of steel structures. Epoxy adhesive embedding can also be used in certain special occasions.

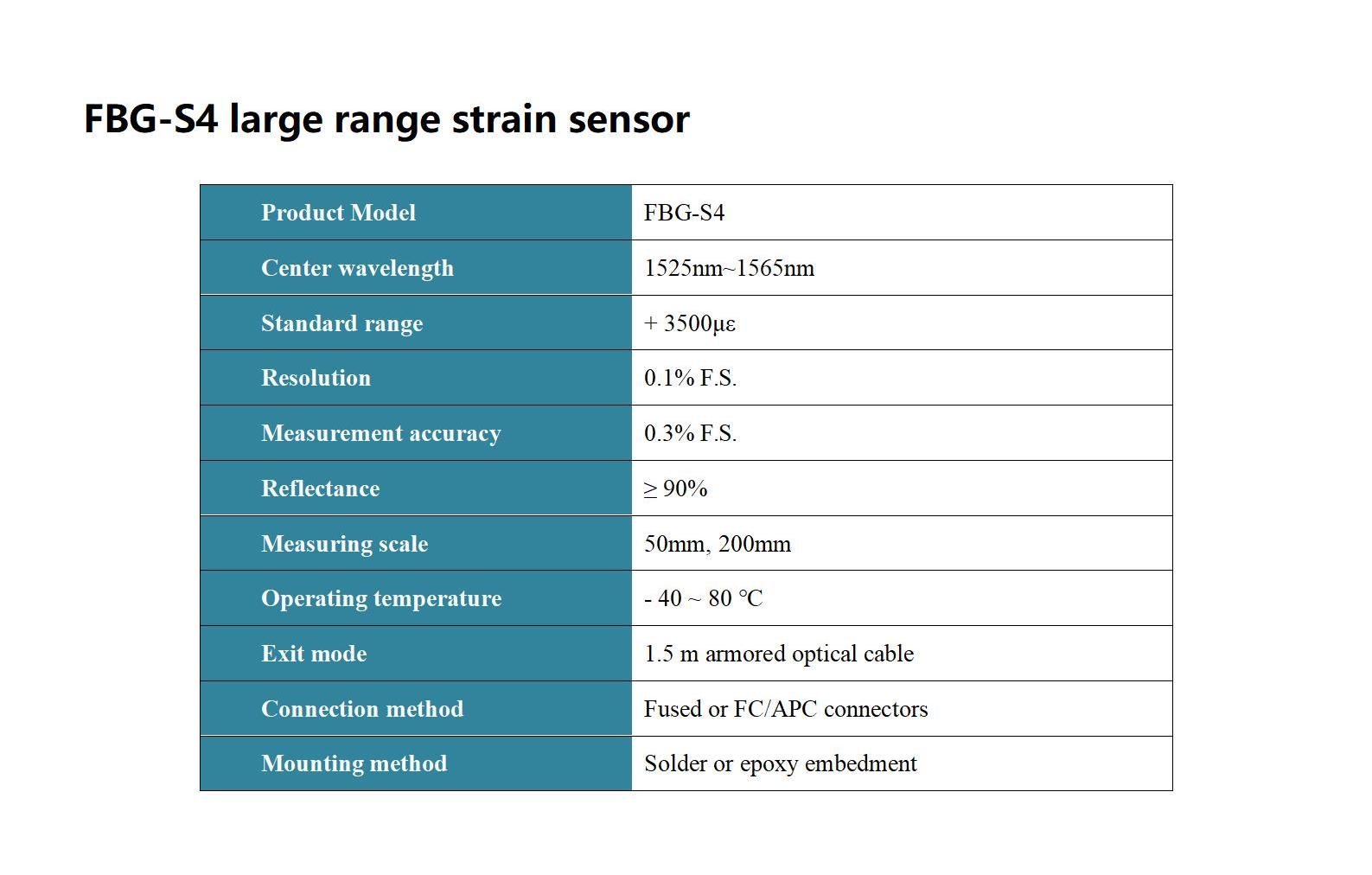

technical parameter
Product Features
1. High measurement accuracy
2. Good long-term stability
3. Easy to install
4. Good dynamic characteristics
application area
1. Health monitoring of civil engineering structures such as bridges, dams, tunnels, and buildings
2. Monitoring of compressive strain of concrete reinforcement
3. Pile foundation testing
4. Strain monitoring of steel structures
Data download
