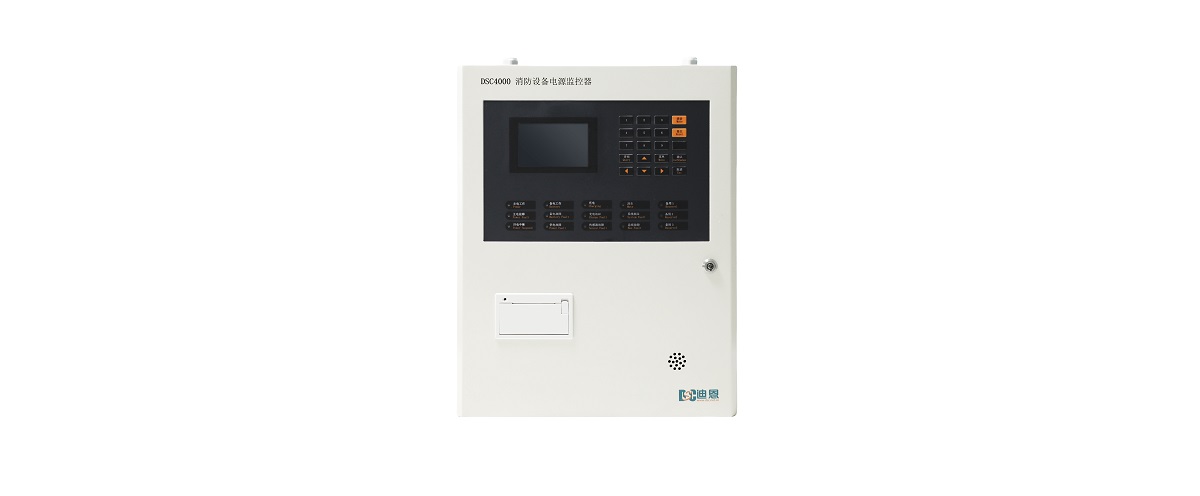

Fire Power Supply Monitoring Host
The monitoring host adopts a non-polarized two-bus data transmission mode, and can connect with the following sensor modules: DSC40X series DC power monitoring sensors, DSC41X series single-phase AC power monitoring sensors, DSC42X series three-phase three-wire power monitoring sensors, DSC43X series three-phase four-wire power monitoring sensors. Together, they form a high-capacity fire power supply monitoring system. Upon alarm, the system can trigger linkage actions, making it suitable for high-rise buildings and industrial facilities.

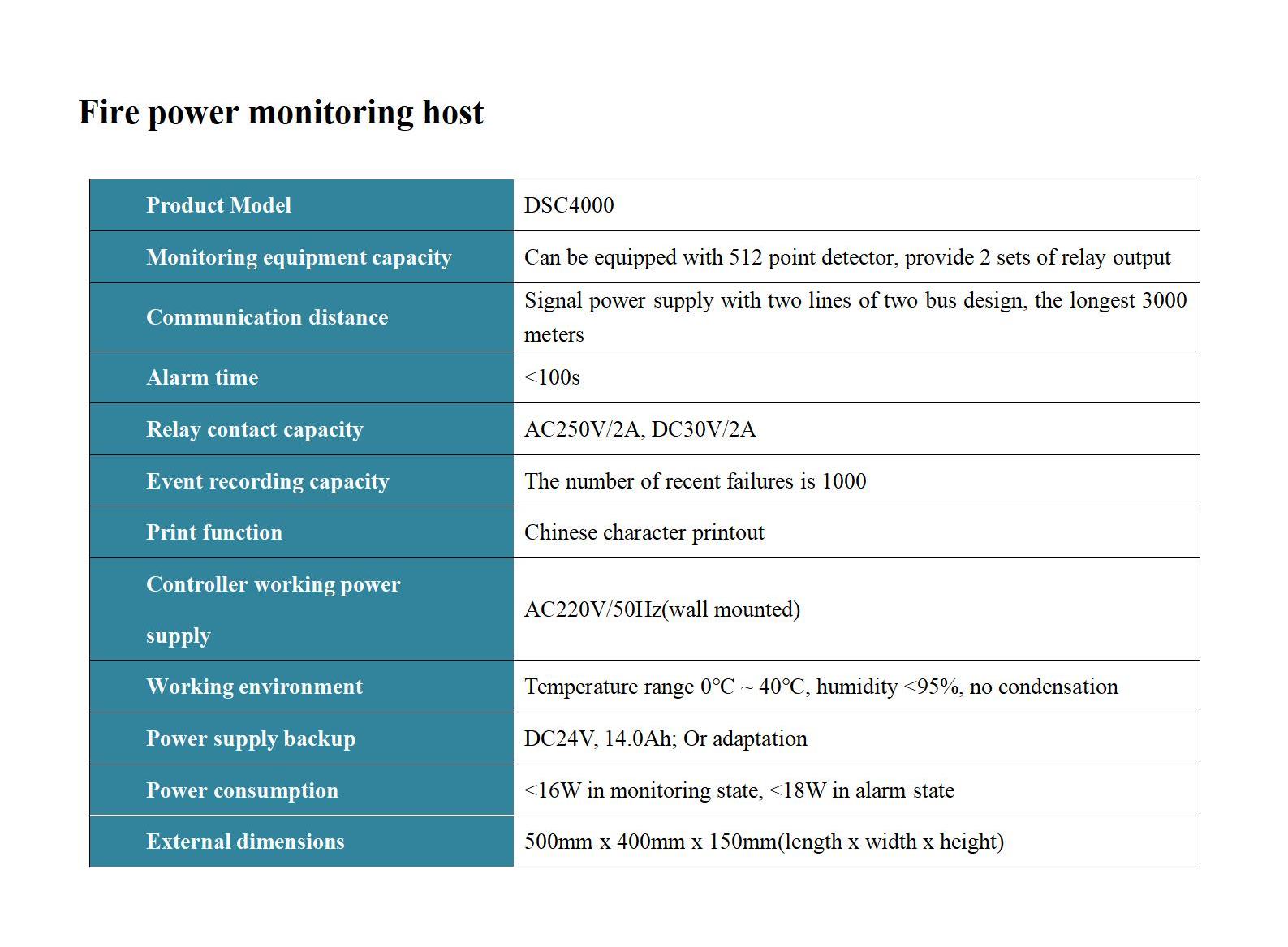

technical parameter

       The host adopts a non-polar two bus data transmission method and is equipped with DSC40X series DC power monitoring transmitter, DSC41X series single-phase AC power monitoring sensor, DSC42X series three-phase three wire power monitoring sensor, and DSC43X series three-phase four wire power monitoring sensor to form a large capacity fire power monitoring system. The system can be linked after alarm and is suitable for fire power monitoring in high-rise buildings and industrial places.

phpa5BCEx


Data download
