The leakage of oil, natural gas and other flammable and explosive products will not only cause resource loss and environmental pollution, but also easily cause fire and explosion. Due to the difference between the temperature of the medium in the tube and the environment and the temperature change caused by the evaporation of the leakage, the optical fiber can be sensed in time, so the optical fiber accompanied by the pipeline layout can also replace the inspection work of the staff on the pipeline, and the specific location of the leak can be notified to the staff in time.

Distributed temperature sensing cable laying along the pipeline can detect the low temperature point when high-pressure gas leaks or the high temperature point when heating liquid leaks, and can quickly locate and guide emergency repair.

The system is suitable for the leakage detection of oil pipeline, natural gas pipeline, liquefied gas pipeline, high-pressure steam pipeline and various toxic gas pipelines.

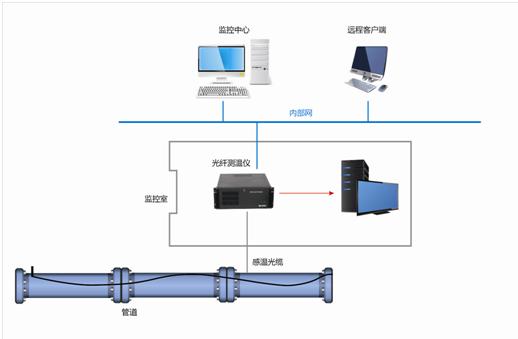

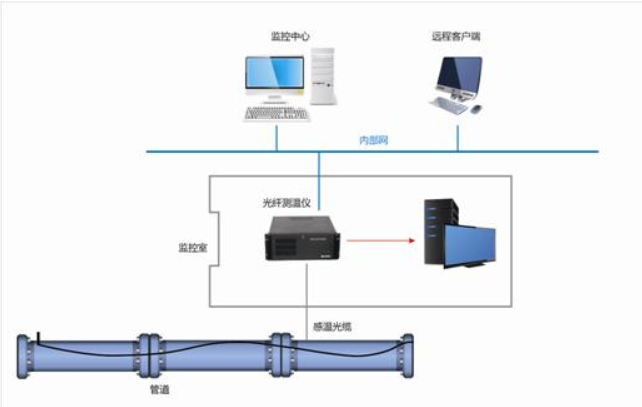

System block diagram:

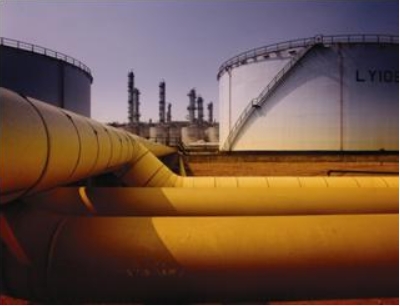

Site construction drawing


System features:

Real-time online monitoring, fast speed, high precision, accurate positioning, low false alarm rate;

Intrinsically safe, fire-proof, explosion-proof, anti-strong electromagnetic interference;

The installation of the system is simple, just lay the optical cable (optical fiber) along the cable under test;

Real-time online monitoring, accurate positioning;

Intelligent system, no personnel on duty, low monitoring cost;

Multi-level alarm mode, constant temperature alarm, differential temperature alarm;

The light source used in the system has a long service life and can meet the requirements of real-time online monitoring.
