DSC434 three-phase four-wire dual voltage current module
DSC434 three-phase four wire dual voltage and current module: capable of monitoring two channels of three-phase four wire AC voltage and one channel of AC current signal; Equipped with operation, communication, and alarm status indicator lights; Adopting guide rail installation.

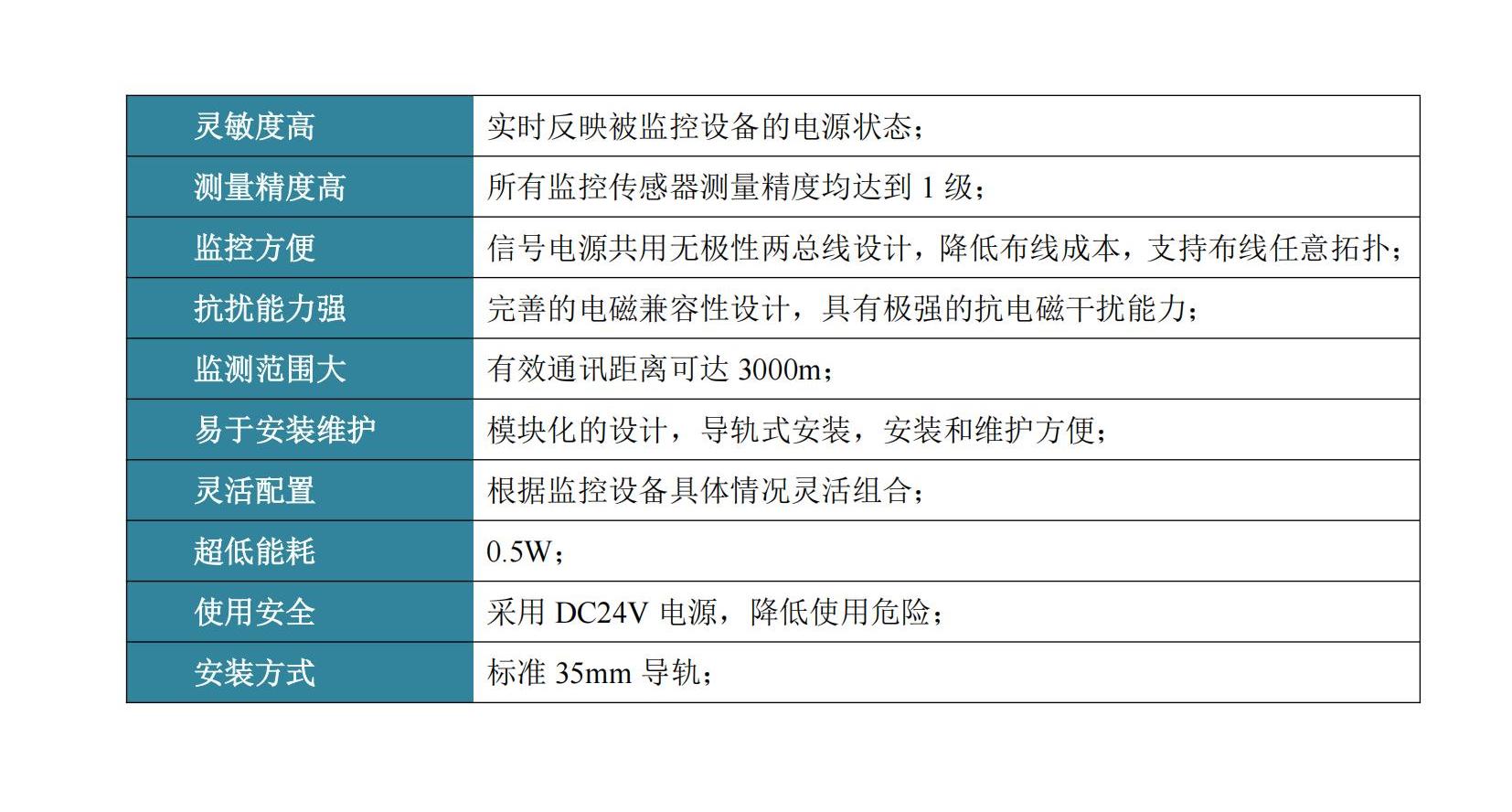

technical parameter
工作电压：DC24V
通讯方式：二总线
通讯速率：2400bps,9600bps
电压：AC50V-400V
电流：AC100mA-6A
功耗：＜ 0.5W
有效通讯距离：3000m
外观尺寸：142.19mm×93.65mm×30mm
