PE+ single-layer steel skein buried temperature measuring cable
High cost performance product, with a positioning accuracy of 11 meters, suitable for distributed temperature monitoring scenarios.
technical parameter

1. Multimode optical fiber is used for temperature leakage monitoring.

2. Small outer diameter, simple structure, fast thermal penetration, and fast temperature response.

3. The optical cable is armored with spiral steel pipes and protected by a single layer of twisted stainless steel wire, which provides excellent impact resistance and tensile strength.

4. PE outer sheath is used to make the optical cable have anti-aging, corrosion resistance, waterproof, abrasion resistance and other properties.

5. Fiber optic cables have high mechanical strength and are suitable for burial and overhead.

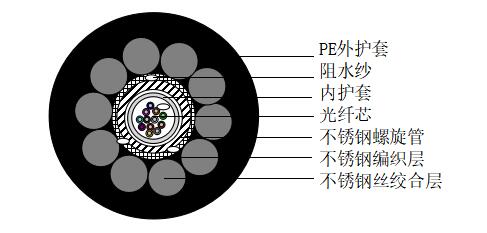

PE+单层钢绞丝地埋型测温光缆



技术指标

PE+单层钢绞丝地埋型光缆

PE+单层钢绞丝地埋型光缆

外径

5.5mm士0.2mm

9.0mm士0.5mm

重量

70kg/km

210kg/km

允许拉伸力

长期2300N,短期4600N

长期7000N,短期14000N

允许压扁力

长期4000N/10cm,

短期8000N/10cm

长期5000N/10cm,

短期10000N/10cm

弯曲半径

静态15D,动态25D

静态15D,动态25D

长期适用温度

-40℃~+85℃

-40℃~+85℃

光纤芯数

2、4、6...可定制

2、4、6...可定制

光纤衰减

≤3.0 dB/km(850nm)

≤1.0 dB/km(1300nm)

≤3.0 dB/km(850nm)

≤1.0 dB/km(1300nm)

光纤类型

多模50/125

多模50/125
